The DAXI device offers advanced solutions for managing electrical circuits, with independent outputs to control various system components. With support for multiple sensors (e.g. temperature, humidity), DAXI not only controls but also monitors system parameters.

Key functions

• Responds automatically to signals from sensors and digital inputs, performing programmed actions such as controlling outputs or sending notifications.
• Uses the Cron syntax of Linux systems to schedule timed tasks, enabling precise time-based actions.
• Features Logic and Lua functions to perform complex logic operations without the need for external controllers.
• Supports popular protocols such as HTTP, MQTT, SNMP and Modbus TCP, providing integration with various devices.

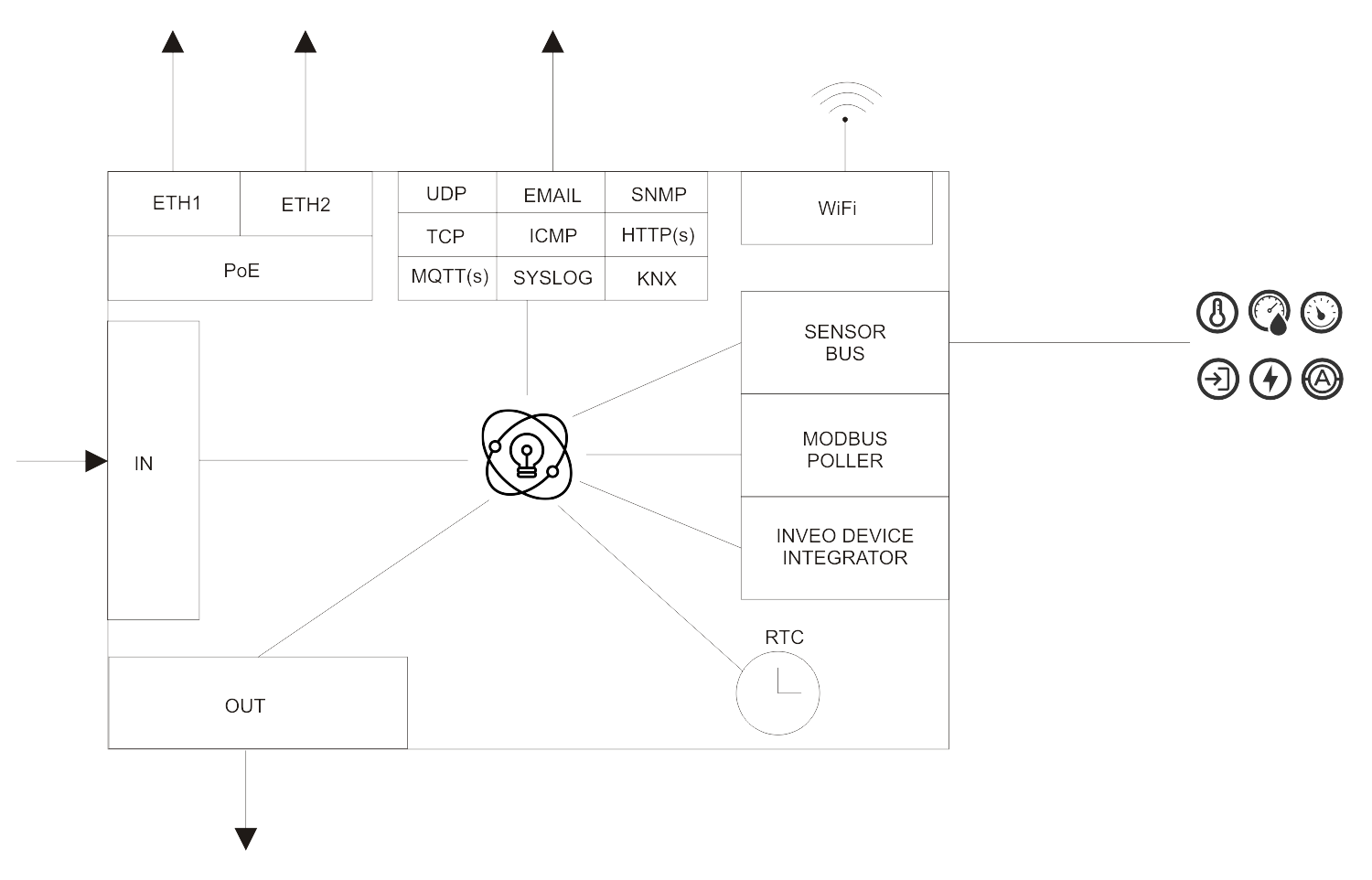

Device overview

• Sensors: Supports a variety of environmental sensors such as temperature, humidity, water flooding, phase loss/power failure, light brightness, air pressure, water pressure, CO/CO₂/NOₓ gases, door opening (reed switch) and others on special request. Thresholds for triggering actions can be customised.
• Actions: Configurable functions triggered by events such as temperature changes or input fluctuations, including email alerts or HTTP requests.
• Inputs: Provides digital inputs with pulse counter and noise filter, enabling a variety of functions, such as long-press detection or pulse frequency comparison.
• Outputs: Provides outputs operating in different modes, such as bistable or timed, with the possibility of assigning them to different sources.

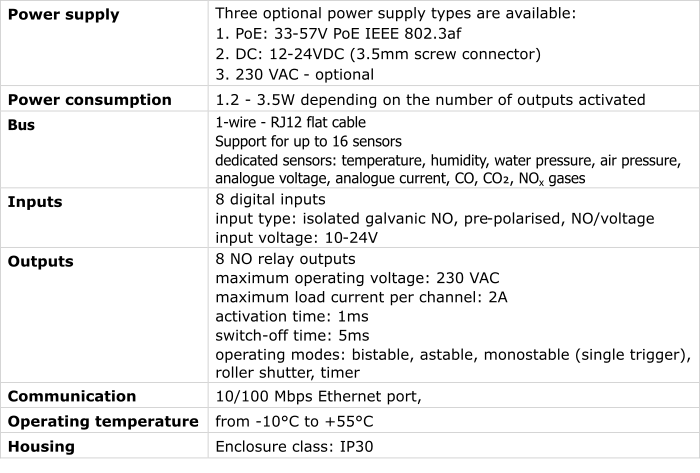

Technical data

Full manual available at https://docs.inveo.com.pl/en/daxi/
