Table recommendations for Electric Tapping Machines



Recomendation Fastest Efficient Proline Price Long reach Universal Universal Proline Universal Large High Torque For large threads Large thread Proline Largest
Type KZ-G12 Speed PJ-G12 SPEED KZ-G16 PJ-G16 KZ-G20 PJ-G20 GEAR PJ-G20 Speed PJ-G30 KZ-G36 PJ-G36 PJ-G48
Thread size M2-M12 M3-M12 M3-M16 M3-M16 M3-M20 M3-M20 M3-M24 M5-M30 M5-M36 M5-M36 M12-M48
RPM 1200 1000 375 321 240 250/550 625 200 156 156 200/50
Two Gears NO NO NO NO NO YES NO NO NO NO NO
Power 600W 900W 600W 660W 600W 1200W 2000W 2000W 1200W 2000W 2000W
Max Nm 20 20 40 40 78 78 90 230 360 360 530
Chamfering YES YES YES YES YES YES YES NO NO NO NO
Drilling YES YES NO NO NO NO NO NO NO NO NO

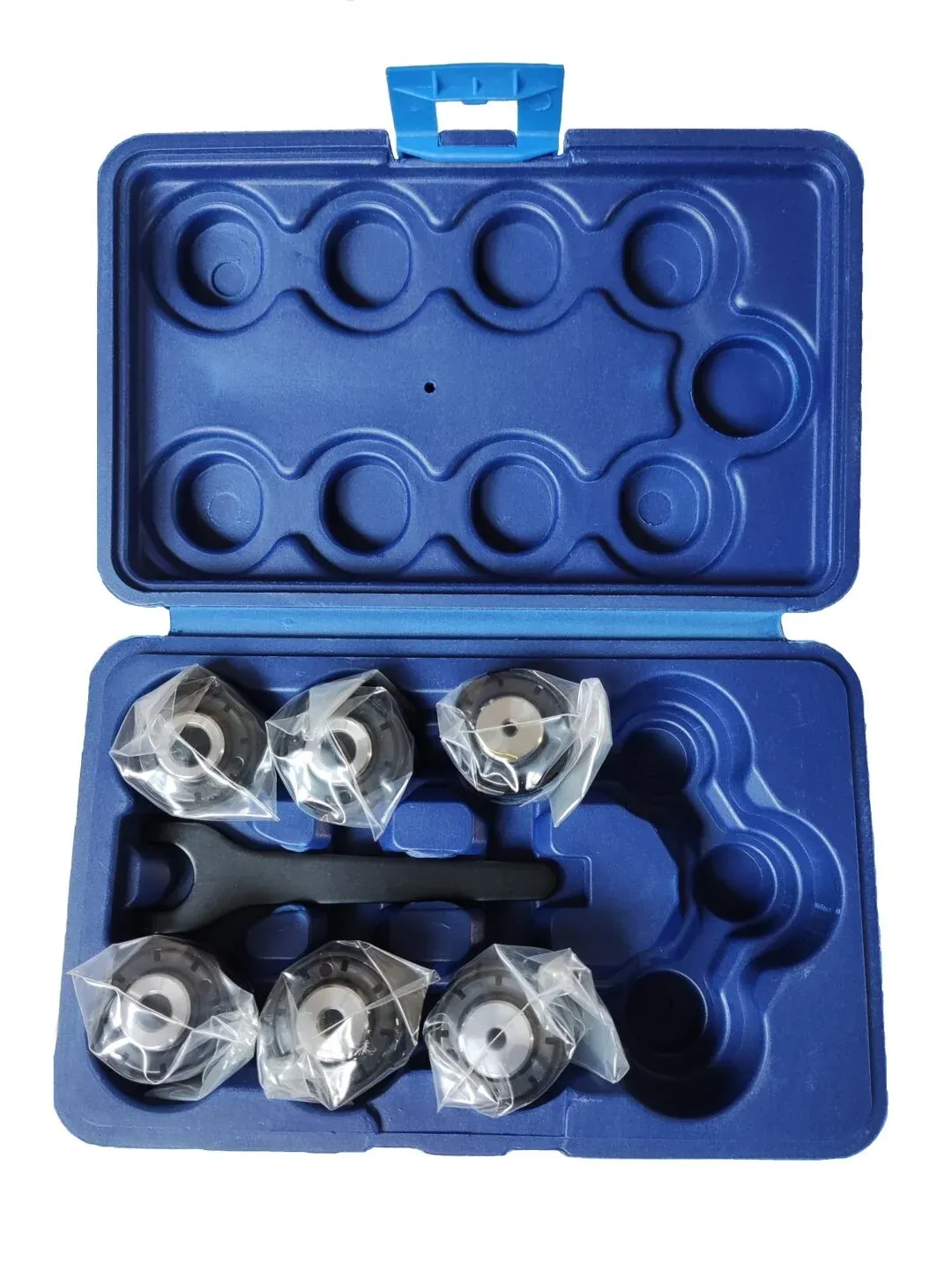

Collets GT12 7 PIECES GT12 6 PIECES GT12 8PIECES GT12 8 PIECES GT12 10 PIECES GT12 10 PIECES GT12 AND GT24 11 PIECES GT24 11 PIECES GT24 13 PIECES GT24 13 PIECES GT24 AND GT60 14 PIECES
3 arm version NO NO NO YES NO NO NO NO NO NO NO
No lubricaiton NO YES YES YES NO YES YES YES YES YES YES
Auto lubrication YES YES YES YES YES NO YES YES YES YES NO
