Depmon is a module used to monitoring environmental parameters in servers and telecommunication cabinets, as well to control of electrical equipment (eg. fans, heating, air conditioning)
User Manual
Certficate of conformity
The device has the following interfaces:
- opto-isolated digital inputs for connecting PIR detectors, gas detectors, switches, limit switches,
- inputs for modules to measure temperature, humidity, pressure, flooding,
- relay outputs (230VAC, NO / NC)
- Built-in rich notification system allows you to set any criteria for triggering messages
Notifications can be sent by LAN:
- SNMP (Trap v2/3),
- Syslog,
- E-mail
- or by external GSM modem (optional).
Built-in editor and a BASIC interpreter allows you to write any in-out interaction such as fan control depending of the temperature or humidity or switching the pump if flooding is detected. Built-in website allows you to create an interface for setting parameters and reading between the device and the user.
The installer has also available OLED display that can be programmed by BASIC.
DepMon is produced in two power supply versions 230VAC and 48VDC designed to powered directly from the battery. Both versions have the ability to monitor voltage + 48V.
Technical data:
- 4 outputs voltage 230V AC with a total current capacity of 10A
- 4 relays outputs NO / NC rated at 10A each
- 2 relays outputs NO / NC rated at 0.5A each
- 6 opto-isolated inputs with external power supply + 12V (max. 300mA)
- 3 channels 1-wire bus (environmental sensors)
- + 48V power input monitoring voltage (48VDC power supply as an option)
- Ethernet jack
- OLED display
- LEDs indicating the current inputs and outputs status and device status
- Standard enclosure 19 inches, 1U
Supported network protocols:
- SNMP (+Trap)
- HTTP/HTTPS
- E-mail SMTP (notifications sending)
- Syslog
- Others:
- built-in BASIC interpreter to set up dependencies on inputs-outputs
- 1-Wire bus (temperature, humidity, pressure)
- RTC clock with battery backup with synchronization NTP
Device management is carried out by WEB interface.

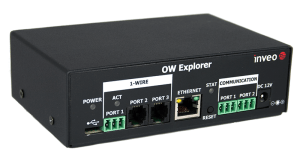

OW EXPLORER
MEASUREMENT OF TEMPERATURE, HUMIDITY, PRESSURE
The device OW Explorer is used to collect and manage data from sensors attached to the 1-Wire bus and measure physical quantities such as temperature, humidity, pressure. The data can be shared to other devices via RS485 (Modbus RTU) or LAN (Modbus TCP, SNMP, HTTP). For each sensorcan be assign a minimum and maximum value, above which it sents Syslog, e-mail or SNMP Trap notification.
The device is contained in a metal housing designed for 1U Rack Servers and telecommunication.
The device is powered by 12V DC. Optionally by Ethernet POE IEEE 802.3af 48V
Supported network protocols:
- SNMP (+Trap)
- MODBUS TCP
- MODBUS RTU available on 2 independent ports RS485
- HTTP/HTTPS
- E-mail SMTP (to send notifications)
- Syslog
- Any frame TCP or UDP
- sending KNX-IP (routing mode)
- sending HTTP GET requests
OW Explorer has a built-in clock RTC with battery backup and synchronization SNTP.
1-Wire bus has 3 independent ports (1 screw connection, 2 RJ12 connectors), so that failure of one (eg. short circuit) does not affect operation of the others.
OW Explorer has the ability to send control frames to other devices using TCP / IP, UDP, KNX and HTTP GET requests.

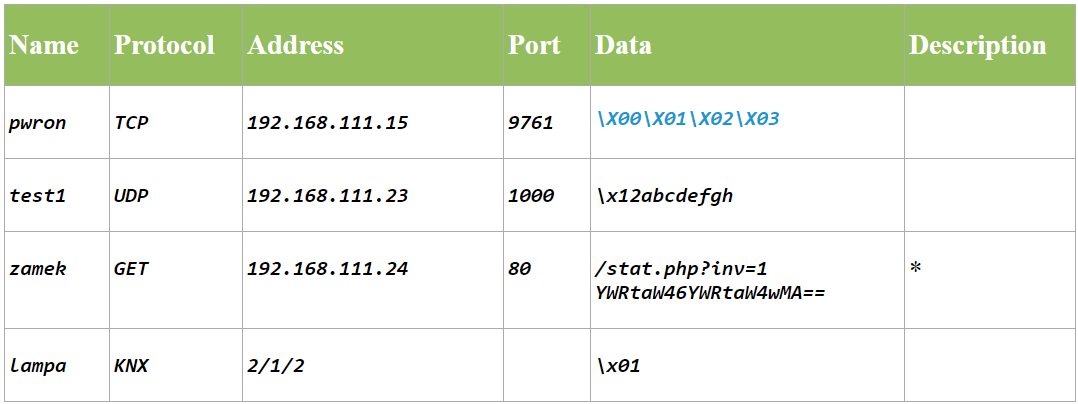

Examples of control frames:
Name
– any user name (this is also the name that can be entered in the configuration of events as Execute Point).
User Manual
Certificate of conformity
Protocol
– the protocol used to send the frame (UDP, TCP, GET, KNX)
Address
– a destination address
Port
– port to sent the frame
Data
– data to send
*If the call HTTP GET needs authorization, the user name and password [user: pass] should be encoded in Base64 format, and place after a space of the call.
In the example coded admin:admin00
to YWRtaW46YWRtaW4wMA==
If the event should make a few points Points, it can be defined in a macro format:
Name CALL point1,point2,…
ex: send CALL pwron,test1
Calling a point send
executes points pwron
and test1
The module is sold with
- LAN cable 1m
- fixing for 19 “rack with screws
- CD with user manual
- temperature sensor with cable 1m
Optional accessories:
- SENS-DS -temperature sensor in glize with cable 1m
- SENS-RACK-HUM – temperature and humidity sensor for mounting with straps
- SENS-RACK-TEMP -a temperature sensor for mounting with straps
