200-400mm Butt fusion pipe welding machine - hydraulic

£5,000.00
In stock
Product Details
Brand: Ramech

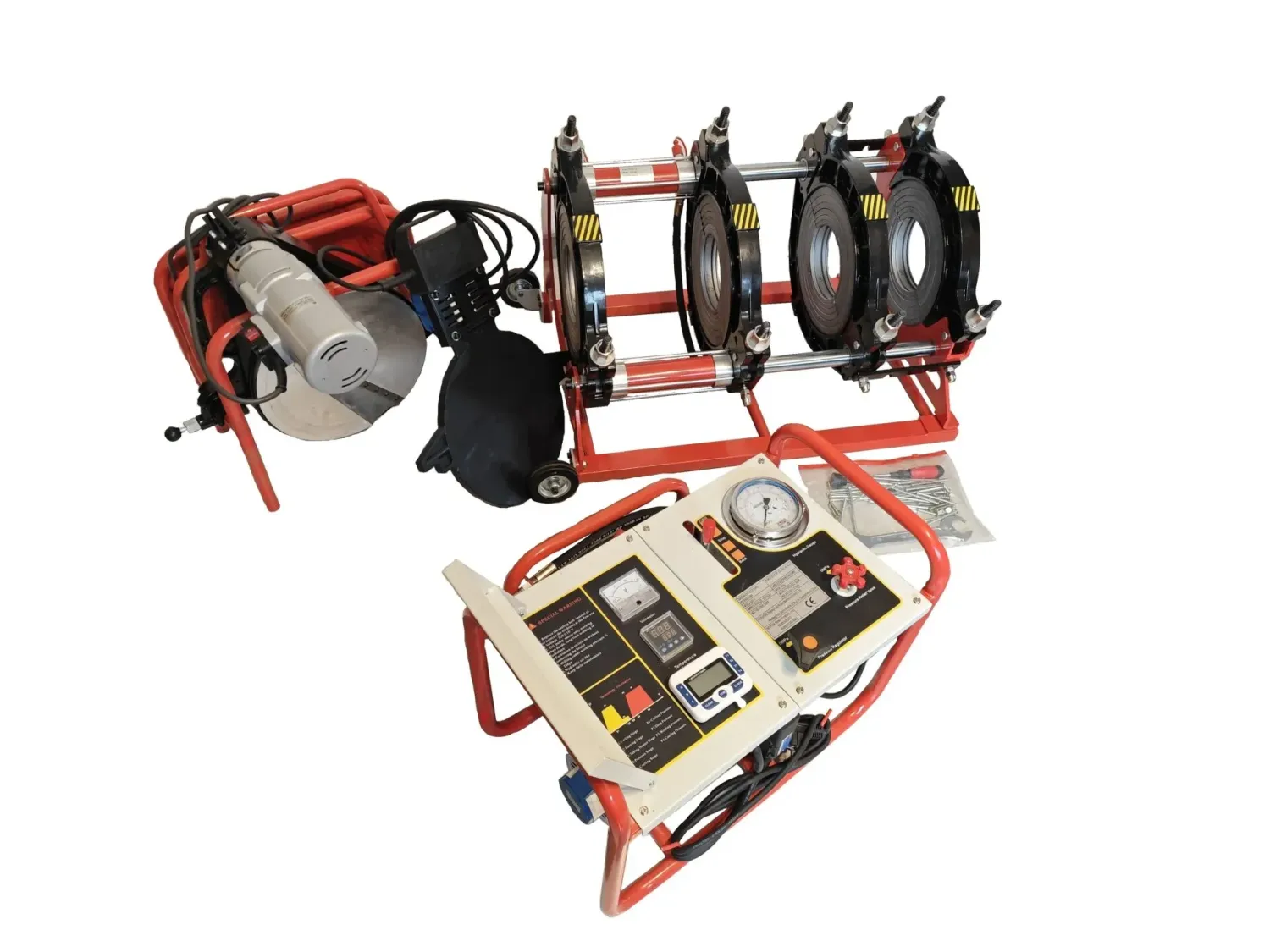

HJC-19 200-400mm butt fusion welding machine for pipes: PE, HDPE, PP, PVDF with hydraulic clamp

Set includes:
- Sled with an oblique bed + removable transport wheels (LIGHT AND RIGID CONSTRUCTION)
- (2 fixed clamps, 2 adjustable, hydraulic clamp, set of reduction rings )
- Heating plate (top class Teflon coating)
- milling machine 350 rpm
- hydraulic unit with PRESSURE ACCUMULATOR
- stand for a milling machine, heating plate
- control panel: with a digital indicator of the current and set temperature, voltage, pressure, welding and cooling time indicator (indicators under the metal cover) + welding table.
- set of necessary tools (spanners, etc.)
The machine is calibrated, after zero inspection in our service center, ready for operation
Specification:
Pipe diameters: 200-400mm (200, 225, 250, 280, 315, 355, 400)
Welded materials: PE, PP, PVDF, HDPE, PB, PPR
Weight: approx. 50 kg

The power of the heating plate is 5000W

Milling machine power 1500W

Hydraulic pump power: 1100W

Pump working pressure 0-6.3MPa

UK plug, set of spanners
