50mm-200mm Butt fusion pipe welding machine - self locking with manometer
+3
+2

50mm-200mm Butt fusion pipe welding machine - self locking with manometer

Store / Pipe welding
£1,510.00
In stock
Product Details
Brand: Ramech

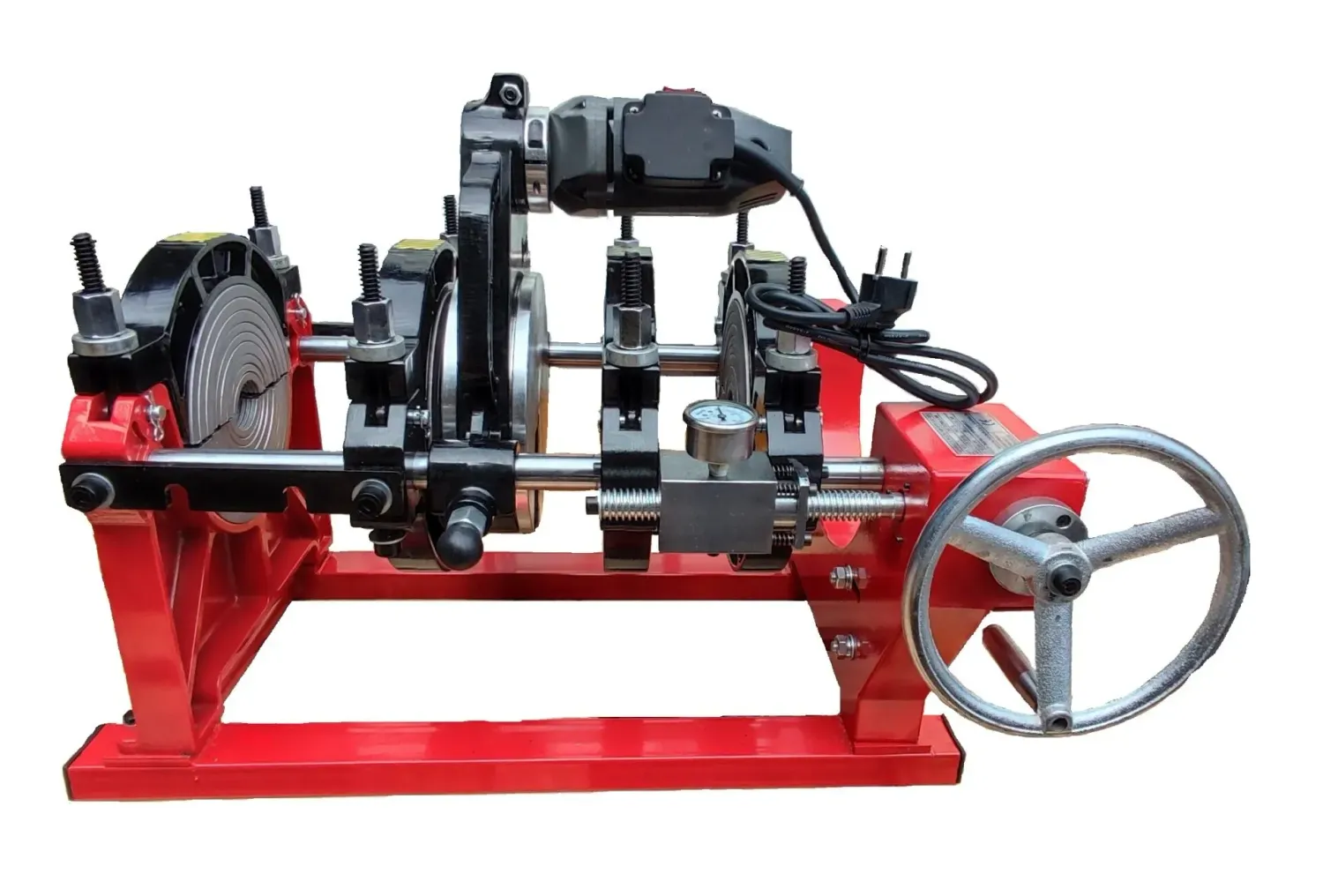

HJC-10 50-200mm butt fusion welding machine for pipes: PE, HDPE, PP, PVDF with a double-sided screw clamp, self-locking (after pressing the pipes, there is no need to hold the clamp until it cools down, the gear is self-locking)

The pressure gauge ensures the repeatability of the weld

The set includes:
– heating plate with thermostat (top-class Teflon coating)

– 2 fixed clamps, 2 adjustable

– Two screw clamp

– milling machine

- manometer

– set of reduction rings

– guide

– stand

– tool kit

Specification:

Temperature range: 0-300C

Pipe diameters: 50-160mm (50, 63,75,90, 110, 125, 140, 160, 180, 200)
Welded materials: PE, PP, PVDF, HDPE, PB, PPR
Weight: approx. 50 kg
Dimensions: height 50cm, guide length 60cm, guide width 40cm
The power of the heating plate is 2300W
Milling machine power 1000W
UK plug, set of spanners
